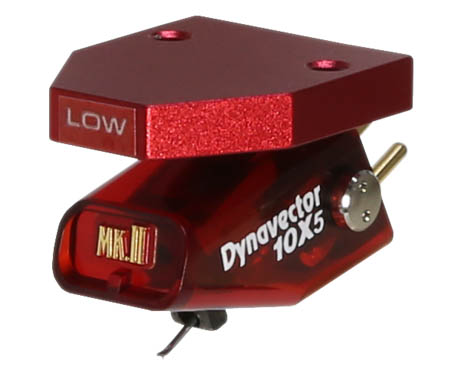

Description of 10X5 MkII LOW

The familia red body which has always been a feature of the 10X series which has undergone minor improvements has now been manufactured for more than forty years.It represents Dynavectors most popular ever model, favoured by music lovers and audiophiles all over the world.

Features and Improvements of 10X5 MkII LOW phono cartridge

Along with several exclusive Dynavector technologies that include “magnetic flux damper” (patent), softened magnetism” (patent) and powerful neodymium magnets that provide the smooth treble response Dynavector are renowned for.

The Dynavector 10X5 MKII phono cartridge also features an improved stylus assembly with the nude diamond “Shibata III” line contact stylus and improved hardened cantilever material. These improvements ensure secure tracking ability over even the most torturous of record grooves whilst achieving extended high frequency response and enhanced musical resolution.

The 10X5 MKII phono cartridge now features a powerful neodymium magnet and a recently designed aluminium head block to provide a rigid platform for the cartridge motor and secure fixing to the tonearm.

The magnetic flux damping and softened magnetism along with the powerful neodymium magnet gives the DV 10X5 LOW a robust 0.5mV output.

The DV 10X5 LOW phono cartridge will be compatible with most head amplifiers or step-up MC transformers making the DV10X5 LOW a first choice low output MC cartridge.

Specifications

Type

Low output moving coil cartridge
with flux damper and softened magnetism

Output Voltage

0.5 mV (at 1KHz, 5cm/sec.)

Channel Separation

25 dB (at 1KHz)

Channel balance

1.0 dB (at 1KHz)

Frequency response

20 – 20,000 Hz（±2dB）

Compliance

12 mm/N

Tracking force

1.8 – 2.2 g

Impedance

32 ohms

Recommended load impedance

> 100 ohms

Cantilever

6mm length hardened aluminium pipe

Stylus tip

Nude Diamond “Shibata III” Line Contact

Weight

7.5 g
