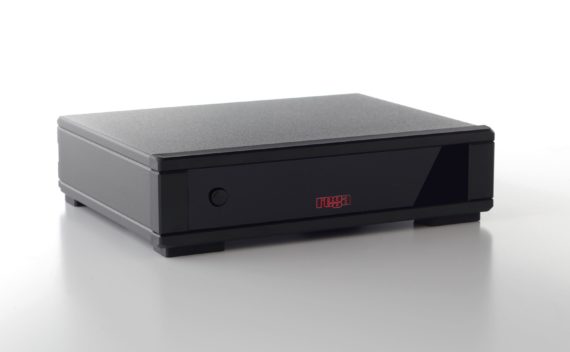

The Fono MC MK4 is an exceptionally high quality MC phono stage designed to maximise the potential of any low output MC cartridge. Although specifically designed to compliment the latest Rega range of moving coils you will find full adjustability for gain and loading via dip switches conveniently placed on the rear panel making the Fono MC MK4 compatible with a wide range of third party low output MC cartridges. Now housed in a brand new redesigned case to match the new Fono MM MK5 and Neo MK2 and Rega’s latest range of electronic components offering a modern look guaranteed to integrate in to any hi-fi system.

TECHNICAL SPECIFICATIONS

Output Impedance

200 Ω

Recommended Minimum Output Load Resistance

5 k

Frequency Response (50 kΩ Output Load)

13 Hz (-3 dB) to 100 kHz (-0.3 dB)

RIAA Accuracy (50 kΩ Output Load)

Better than ±0.2 dB 100 Hz to 100 kHz

Power Requirements

24 V AC at 150 mA maximum

For full technical specifications, download FONO MC MK4 USER MANUAL below.

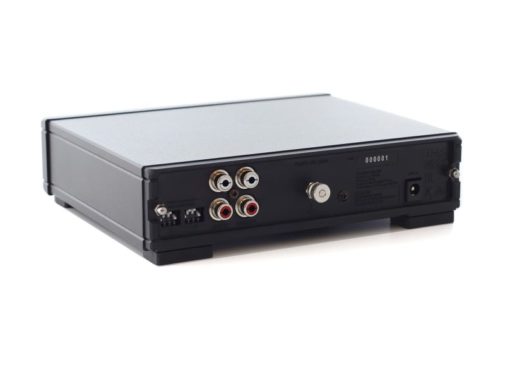

LOAD SETTINGS FOR ADJUSTABLE MC STAGES

Input Sensitivity (for 200 mV Output)

4 off = 133 uV / 4 on = 67 uV

Input Loading Resistance

1 and 2 off = 400 Ω / 1 on = 100 Ω / 2 on = 150 Ω / 1 and 2 on = 70 Ω

Input Loading Capacitance

3 off = 1000 pF / 3 on = 4300 pF / Gain (at 1 kHz) / 4 off = 63.5 dB / 4 on = 69.5 dB

Maximum Input Level (at 1 kHz)

4 off = 6.7 mV / 4 on = 3.4 mV

Factory settings for all Rega MC cartridges

Impedance 100 Ω / Capacitance 1000 pF / Gain Setting High
